DJI SDR Transmission Combo – Wireless Video Transmitter & Receiver
- Up to 3km Transmission: Stable SDR video transmission with strong anti-interference performance and extended range for professional filmmaking setups.
- 1080p60 Monitoring: Transmit Full HD video at up to 1080p/60fps with a maximum bitrate of 20Mbps.
- Low 35ms Latency: Minimum transmission latency as low as 35ms, excluding camera and display latency.
- SDI, HDMI & USB-C: Flexible monitoring through professional SDI/HDMI outputs or direct USB-C connection to compatible phones and tablets.
- Broadcast Mode: Connect one transmitter to an unlimited number of receivers for multi-monitor production environments.
- Wi-Fi Monitoring: The transmitter can connect directly to smartphones or tablets through Wi-Fi without requiring a receiver.
- Ronin Integration: Compatible with selected DJI RS gimbals for remote gimbal and supported camera control functions.
- Compact 145g Design: Lightweight transmitter and receiver units are designed for professional rigs, gimbals and mobile production setups.
Check Delivery Time
Your purchase from Bank of Electronics is protected by Razorpay Money Back Promise.
If your order is incorrect, damaged, defective or not delivered, you may be eligible for a full refund at no additional cost from Razorpay. Valid only on eligible prepaid orders above ₹200.
100% refundOn eligible non-delivery, incorrect, damaged or defective-item claims
100% freeNo hidden costs or additional claim charges from Razorpay
Razorpay offers the Money Back Promise only for select businesses that pass its verification checks. Coverage and claim approval are determined by Razorpay under its applicable terms. Cash on Delivery orders are not covered.
To read detailed terms and conditions, click here.
Free Shipping on Online Payment
Are you a business ?
- Get GST TAX Invoices for all Orders Instantly.
- Need a Quotation or Proforma Invoice with Stamp & Signature to release payment?
- NEED a certificate from the publisher? We are Official Authorised Distributors of all products sold
-> Email Us & get PI in 1 hour.
DJI SDR Transmission Combo
The DJI SDR Transmission Combo is a compact professional wireless video transmission system designed for filmmakers, camera crews and content-production teams that need stable, low-latency monitoring without the size or complexity of larger transmission systems.
The Combo includes both the DJI SDR Transmission Transmitter and Receiver, supporting up to 1080p/60fps transmission, SDI and HDMI workflows, USB-C monitoring, Wi-Fi connectivity and deep integration with compatible DJI Ronin gimbals.
Stable SDR Video Transmission
DJI SDR Transmission uses Software Defined Radio technology to provide reliable transmission with strong anti-interference and penetration capabilities.
The system automatically works across supported frequency bands to help maintain a stable video feed in challenging wireless environments.
Up to 3km Transmission Range
In Control mode with Broadcast mode disabled, DJI specifies a maximum SDR transmission distance of up to 3km under FCC conditions.
- Maximum SDR Range: Up to 3km (FCC)
- CE/SRRC/MIC Range: Up to 2km
- Wi-Fi Range: Up to approximately 200m
Actual range depends on local regulations, interference, obstacles and the surrounding wireless environment.
1080p60 Full HD Monitoring
DJI SDR Transmission supports Full HD video transmission at up to 1080p/60fps, making it suitable for professional on-set monitoring and camera-operation workflows.
- Maximum Video Resolution: 1080p
- Maximum Frame Rate: 60fps
- Maximum SDR Bitrate: 20Mbps
- Video Codec: H.264
Low-Latency Transmission
Low latency is essential for camera operation and live monitoring. DJI specifies transmission latency as low as approximately 35ms when camera and screen-display latency are excluded.
- Transmission Latency: Approx. 35ms excluding camera/display latency
- Total Tested Latency: Approx. 80ms including camera and display
These figures are measured with 1080p/60fps video and Broadcast mode disabled.
SDI and HDMI Professional Connectivity
The transmitter supports both SDI and HDMI input, allowing it to work with a wide range of professional cinema, mirrorless and video cameras.
The receiver provides both SDI and HDMI output for connection to production monitors, recorders and other compatible equipment.
Innovative USB-C Monitoring
The receiver can output video directly to a compatible smartphone or tablet over USB-C.
This gives smaller production teams a lightweight monitoring option without requiring a dedicated professional monitor for every crew member.
Direct Wi-Fi Monitoring
The DJI SDR Transmission Transmitter can also connect directly to smartphones or tablets over Wi-Fi through the Ronin app.
This allows monitoring without using the dedicated Receiver and supports up to two connected mobile devices in Wi-Fi mode.
Broadcast Mode for Multi-User Monitoring
Broadcast mode allows a single transmitter to connect with an unlimited number of DJI SDR Transmission Receivers.
This is especially useful on larger productions where directors, focus pullers, clients and other crew members need access to the same camera feed.
Broadcast mode provides additional receiver flexibility, although transmission range and bitrate are lower than in Control mode.
Control Mode
Control mode is designed for setups using up to two receivers and provides stronger anti-interference performance, seamless frequency switching and remote-control functionality.
For most one-to-one or one-to-two monitoring setups, DJI recommends using Control mode with Broadcast mode disabled.
DJI Ronin Compatibility
DJI SDR Transmission integrates with selected DJI RS-series gimbals including compatible RS 4 Pro, RS 4 and RS 3 Pro setups.
Depending on the connected equipment, supported functions can include:
- Remote gimbal control
- Force Mobile
- Virtual joystick control
- Gimbal recentering
- Supported camera parameter adjustment
- Remote recording control
Camera and gimbal functionality varies by model and may require additional control cables.
Remote Camera Control
With compatible cameras and the required control cable, DJI SDR Transmission can adjust selected camera parameters including aperture, shutter speed and ISO.
Recording can also be triggered remotely on supported camera models.
Multiple Simultaneous Outputs
The DJI SDR Transmission Receiver can output video through SDI, HDMI and USB-C simultaneously.
This allows one receiver to feed multiple monitoring or recording devices without requiring additional signal-splitting hardware in supported setups.
Compact and Lightweight Design
Both the transmitter and receiver weigh approximately 145g including antennas, making them easy to integrate into camera rigs and gimbal setups.
- Transmitter Weight: Approx. 145g
- Receiver Weight: Approx. 145g
- Dimensions: Approx. 86.5 × 64 × 32mm excluding antennas
Flexible Power Options
Both units can be powered through USB-C or compatible NP-F batteries, giving crews flexibility when working on location.
- USB-C PD power support
- 6.8–17.2V DC power input
- Compatible NP-F battery power
Key Specifications
- Product: DJI SDR Transmission Combo
- Transmission System: SDR + Wi-Fi
- Maximum SDR Range: Up to 3km FCC / 2km CE, SRRC, MIC
- Maximum Wi-Fi Range: Approx. 200m
- Maximum Video: 1080p/60fps
- Maximum SDR Bitrate: 20Mbps
- Minimum Transmission Latency: Approx. 35ms
- Video Codec: H.264
- Transmitter Inputs: SDI / HDMI
- Receiver Outputs: SDI / HDMI / USB-C
- Broadcast Mode: Unlimited receiver support
- Wi-Fi Monitoring: Up to 2 mobile devices
- Transmitter Weight: Approx. 145g
- Receiver Weight: Approx. 145g
- Power: USB-C PD / DC / NP-F Battery

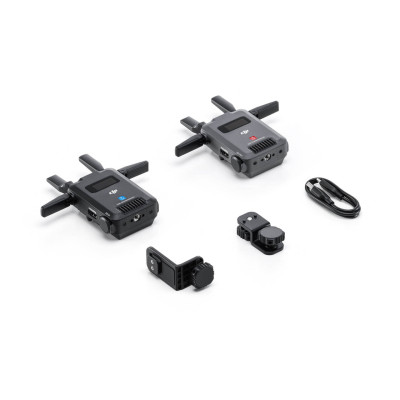

In the Box
- DJI SDR Transmission Transmitter (TX) × 1
- DJI SDR Transmission Receiver (RX) × 1
- USB-A to USB-C Cable (43cm) × 1
- Transmitter Camera-Mounting Adapter Plate × 1
- Transmitter Gimbal-Mounting Adapter Plate × 1
Frequently Asked Questions
What is included in the DJI SDR Transmission Combo?
The Combo includes one DJI SDR Transmission Transmitter, one Receiver, a USB cable and mounting adapter plates for camera and gimbal setups.
How far can DJI SDR Transmission transmit video?
DJI specifies up to 3km under FCC conditions and up to 2km under CE, SRRC and MIC conditions when using Control mode with Broadcast mode disabled.
What video quality does it support?
The system supports video transmission at up to 1080p/60fps with an SDR bitrate of up to 20Mbps.
Can I monitor without the Receiver?
Yes. The Transmitter can connect directly to compatible smartphones and tablets through Wi-Fi using the Ronin app.
Can I connect multiple Receivers?
Yes. Broadcast mode allows one Transmitter to connect with an unlimited number of compatible Receivers.
Does it work with DJI Ronin gimbals?
Yes. DJI SDR Transmission supports integration with selected RS-series gimbals for compatible remote-control and monitoring functions.
Why Choose DJI SDR Transmission?
DJI SDR Transmission offers professional wireless video monitoring in a compact and flexible system. Its combination of stable SDR transmission, 1080p60 video, low latency, SDI/HDMI connectivity and USB-C or Wi-Fi monitoring makes it suitable for both small crews and larger production environments.
With Broadcast mode, Ronin integration and lightweight transmitter and receiver units, the system provides a practical solution for filmmakers who need reliable wireless monitoring without moving to a larger professional transmission platform.
